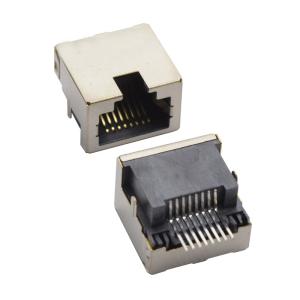

8p8c surface mount recessed RJ45 Modular Jack connector with H=6.85mm low profile

Name: 8p8c surface mount recessed RJ45 Modular Jack connector with H685mm low profile
Brand: Heling
Price: 0.25 USD

Ask Latest Price

Video Channel

Brand Name :Heling

Model Number :MJ88B-BX11-RVSC

Certification :RoHS, SGS

Place of Origin :China

MOQ :1000PCS

Price :0.25-0.45

Payment Terms :T/T in advance

Supply Ability :500K per month

Delivery Time :2-5 weeks

Packaging Details :Tray or tape and reel

Contact Now

Add to Cart

View Product Description

Product description: 8P8C RJ45 connectors, tab-up, SMT, shielded, sinking plate type

Material

Insulator:High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area

Electrical

Voltage Rating:125 V AC(RMS)
Current Rating:1.5 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 500MΩ Min.
Dielectric withstanding voltage: 1000 VAC RMS 60Hz, 1 Min.

Mechanical

Durability:750 mating & unmating cycles

Mated Retention Force: 7.7kg

Operating Temperature:-40°C to +85°C
